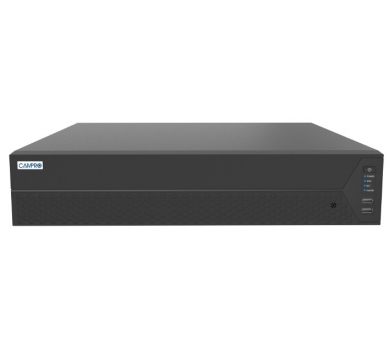

32CH Ultra 4K HD NVR
- IP Camera input: Max. 32CH / 8 x 10TB HDD + 1 x E-SATA
- Decoding Ability: 16CH*1080P@30fps
- 1CH Face Detection or 2CH Perimeter Detection
Description
| CB-NVR-9532 | |
| CH & Compression | 32CH H.265 / H.264 |
| Chipset | Hi3536 |
| RAM | 1.5G DDR3 |
| Operation System | Embedded Linux |
| Operation Interface | 16bit True Color Graphic Menu Operation Interface |
| Image Display | 1/4/6/9/12/24/32 Screen |
| Input Bandwidth | 200Mbps |
| Out Bandwidth | 200Mbps |
| IPC Input | 32CH |
| Audio Input | 1CH, RCA (Line in, 2Vp-p, 1KΩ), Voice Intercom |
| VGA Output | 1CH, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| HDMI Output | Standard 2.0, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio Output | 1CH, RCA (Line out, 2Vp-p, 300Ω), G.711A |
| Audio Compression | G.711A / G726 |
| Audio Bit Rate | 64Kbps (16bit) |
| IP CH Resolution | Main stream: Up to 3840x2160, Auxiliary stream: D1 |
| Video decoding | H.265 (Main Profile@Level 5.0) / H.264 (Up to High Profile@Level 5.1) |
| Synchronous Playback | Up to 32CH (Tag / Smart / External Search) |
| Decoding Ability | 16CH*1080P@30fps |
| Alarm | Support Alarm Push, SSl E-mail Alarm |
| Bidirectional Talk | Two-way Voice Intercom |
| Motion Detection | Zones: 396(22*18), Multi-level Sensitivity: level 1~6 |
| Snap Shot | Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive) |
| Smart Phone | iOS, Android |
| P2P / Cloud Storage | Support |
| CMS / Mobile App | IE / Web / Campro CMS / Campro View App |
| Intelligent Analysis | Face Detection -1CH or Perimeter Detection-2CH |
| Network Protocol | DDNS, DHCP, FTP, HTTP, ONVIF, P2P, PPPOE, RTP/RTSP, SMTP, SNTP, TCP/IP, UDP, UPnP |
| 3G Dongle | Support |
| DDNS | Built in Free DDNS |
| Remote Operation | Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information |
| SATA HDD Interface | 8 x 10TB HDD + 1 x E-SATA |
| Network Port | RJ45*2, 10M / 100M / 1000M, Self-Adaptive Ethernet Interface |
| USB Port | 3 x USB 2.0 |
| RS-232 | 1*RS232 x 1 |
| RS-485 | 1*RS485 Half Duplex |
| Alarm Input | 16CH (I/O) |
| Alarm Output | 4CH (Relay NO/NC) |
| Dimension | 441*448*88mm |
| Weight | 7kg (Not including HDD) |
| Power Supply | AC110-240V±10%, 47Hz-63Hz |
| Power Consumption | < 20W (without HDD, without POE) |
| Operation Temp. | -10°C~55℃ |
| Humidity | 10~95% |
| Certification | CE / FCC / RoHS |
