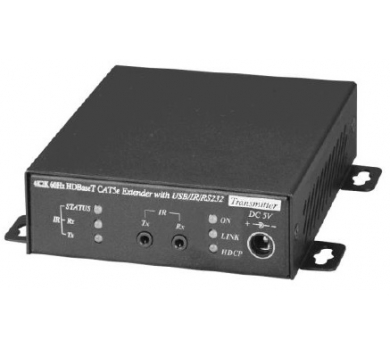

4K2K 60Hz HDMI (HDBaseT) CAT5e Extender with USB / IR / RS232
- Extends HDMI, USB, RS232 and IR signal over one CAT5e/6 cable
- Uncompressed high definition video up to 4K2K@60hz (YCbCr 4:2:0)
Description
| HE23UT | HE23UR | |
| HDMI Connector | HDMI Type A x 1 | |
| HDMI Video Support | 1080p @ 60Hz @ 48bits, 3D, 4K x 2K(YCbCr 4:2:0) | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| HDBaseT Connector | RJ45 x 1 | |
| HDBaseT Distance | 100M / 150M (Long Reach mode) | |
| RS-232 Interface | DB9(F)/3.5mm STEREO PHONE JACK | DB9(M)/3.5mm STEREO PHONE JACK |
| RS-232 Baud Rate | 115200 bps / full duplex | |
| IR Input / Output | 3.5mm Phone Jack x 2 | |
| IR Carrier Frequency/Angle/Distance | 30~60KHz / T : ± 10° / R : ± 55° / 5M / Bi-directional | |
| USB input / output | USB Type B x 1 | USB Type A x 1 |
| Power Consumption | 800mA | 1200mA |
| Power Supply | DC 5V 2A | |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 75°C, Humidity: up to 95% | |
| Dimension / Weight | 109.6 x 109.5 x 30 mm | |
| Weight | 280 g | |
| Certification | CE / FCC / RoHS | |
