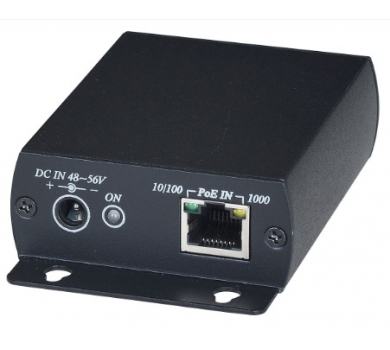

Ultra High Power 90W POE Repeater
- Extend of both power and data beyond 100M
- Allow to use multiple repeaters for longer range
- No external power required
Description
| IP04X90 | ||
| Power & Data Input/Output | RJ-45 | |
| PoE | IEEE 802.3af 13W, at 25.5W, LTPoE++ 38.7, 52.7, 70, 90W | |
| Data Link | Pin 1/2, 3/6, 4/5, 7/8 | |
| Power Link | Pin 1/2(+), 4/5(+), 3/6(-), 7/8(-) | |
| Power Input | RJ45 DC 48V ~ 58V (PoE) or external power ADAPTER: DC JACK DC 48~58V | |
| Power Output | RJ45 DC 48V ~ 56V | |
| Link Speed | 10 / 100 / 1000 Mbps | |
| Transmission Range | 100M | |
| Power Consumption | 1.4W 10Mbps, 2.6W 100/1000Mbps | |
| LED Indication | Power: Green, Data link: Yellow/Green | |
| Temperature | Operation: 0 ~ 70°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 67 x 110 x 27 | |
| Weight g | 175 | |
| Certification | CE / FCC / RoHS | |
