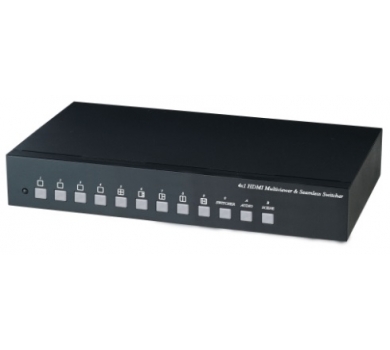

4 x 1 HDMI Multiviewer & Seamless Switcher
- Multiplexes 4 HDMI input into 1 HDMI output
- Support resolution up to 1080p 60Hz
- Control option: IR remote control, front panel button
Description
| HM41E | ||
| Video Input Resolution | 480p, 576i, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/50/60Hz | |
| Video Output Resolution | 720p@60Hz, 1080p@60Hz | |
| Video Output / Input Interface | HDMI Type A x 1 / HDMI Type A x 4 | |
| IR Carrier | 38Khz / ±45° / 5M | |
| CONSOLE | RS-232(F) x 1 | |
| Function button | Button x 12 | |
| Power Supply | DC 12V / 1A | |
| Power Consumption | 660mA | |
| Temperature | Operation: -10 ~ 70°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 253 x 144 x 40 | |
| Weight (g) | 840 | |
| Certification | CE / FCC / RoHS | |
