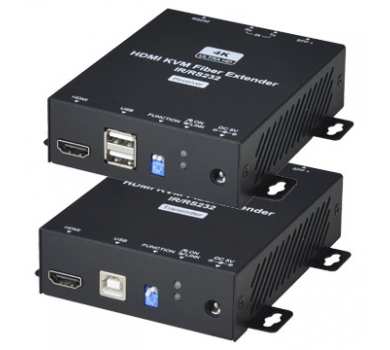

4K HDMI & USB / IR / US232 Fiber Extender
- Support 4K@60hz (18Gbps) 4:4:4 8bits, HDR
- Support HDMI 2.0/HDCP 2.2
- Use external SFP+10 Giga module for different distance
Description
| HE01FT-4K6G | HE01FR-4K6G | ||
| HDMI In/Out | HDMI Type A x 1 | HDMI Type A x 1 | |
| HDMI Resolution | 4K@60Hz 4:4:4 18Gbps (6Gbps per color), 1080p@60Hz 16bit, 3D, HDR, Dolby vision | ||
| HDMI Audio | LPCM 7.1 @ 192Khz, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X | ||
| Link Interface | SFP 10G+ | ||
| Transmission Distance | Multimode 300 SingleMode 60Km (Max) | ||
| RS-232 Interface | DB9(Female) | DB9(Male) | |
| RS-232 Data Rate | 115200 bps / Full Duplex | ||
| IR Input / Output | 3.5mm Phone Jack x 2 | ||
| IR Frequency carrier/receiver angle/receive distance | 30~60KHz / T：± 10 ° / R ：± 55 ° / 5M Bi-Directional | ||
| Keyboard / Mouse | USB Type B x 1 | USB Type A x 2 | |
| Power Consumption | Max 5W | ||
| Power Supply | DC 5V / 2A | ||
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | ||
| Dimension | 109.6 x 114.5 x 30 mm | ||
| Weight | 270g | ||
| Certification | CE / FCC / RoHS | ||
