5MP 26X PTZ Camera, 200M IR Range
Back to list

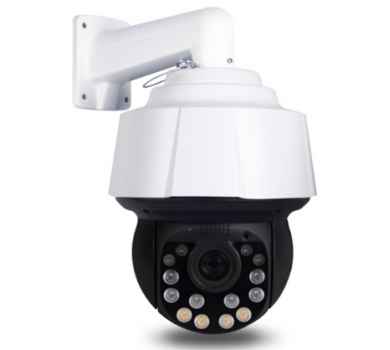

5MP 26X PTZ Camera, 200M IR Range

  • 5MP 26X PTZ Camera, 200M IR Range
  • 5.0~130mm 26X Optical Zoom
  • Humanoid/Vehicle Detection
Description
CB-26X-2050
Digital Video Processor  1/2.8"  5MP CMOS Sensor
RAM & ROM  1GB RAM / 4GB ROM
Frame Rate 2560*1920
Minimum Illumination Color: 0.001Lux@F1.6(AGC ON), B/W: 0Lux@IR ON
Shutter Speed   Auto / 1/25 ~ 1/100,000s
Slow Shutter  Support
Aperture DC drive
D/N  Auto, Dual IR-Cut Filter (Day / Night / Auto / Schedule)
IR Illuminator / Wavelength  Up to 200M / 850nm
Lens  5 ~ 130mm Motorized 26X Optical Zoom Lens
Optical Zoom  26X
Focus Control  Auto / Semi-Auto / Manual
Iris Control  Auto Iris
Aperture Value Auto; F1.5(W)~F3.8(T)
Field of View (H) 56.9° ~ 2.9° (Wide ~ Tele)
Field of View (V) 32.2° ~ 1.6° (Wide ~ Tele)
Field of View (D) 68.4° ~ 3.4° (Wide ~ Tele)
DORI  Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
  5mm 123.8  49.5 24.8 12.4
  130mm 2478 992 496 248
Max. Resolution  2560*1920@25/30fps
Main Stream Main Stream@25/30fps: 2560*1920, 2560*1440, 2304*1296, 1920*1080, 1280*960, 1280*720
Sub Stream  Sub Stream@25/30fps: 800*448, 704*576, 640*360, 352*288
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate  128Kbps ~ 12Mpbs
Audio Compression  G.711A
Audio Bit Rate  Minimum 8 Kbps or Higher
Area Exposure / Focus Support
Gain Control  Auto / Manual
BLC / White Balance BLC: On/Off, White Balance: (Auto / Manual / Lock)
Defog Support
Day/Night Switch Auto, Manual, Timing, Alarm Trigger
Flip  Normal / Flip Vertical / Flip Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
HLC Support
Image Stabilization (EIS) Support
DNR 2D + 3D DNR
WDR ≥ 120dB
S/N Ratio ≥ 56dB
Privacy Mask  On/Off, (8 Areas, Rectangle)
Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE
Baud Rate  1200 / 2400 / 4800 / 9600bps (Default:115200bps)
Streaming Method Unicast / Multicast
Simultaneous  Up to 20 channels
User / Host  5 Users
Security  Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings
Video Management Software  IE / Web / PC Client Software / App
WEB IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
Mobile Client  iOS, Android
P2P Support iOS / Android / PC
Horizontal Rotation Range  0-360°
Horizontal Rotation Speed Pan Speed: Configurable from 0 to 80°/s
Tilt Rotation Range 0~93°
Tilt Rotation Speed  Tilt Speed: Configurable from 0 to 40°/s
Preset Points  220
Patrol Scan  4 Patrols, up to 16 Presets per patrol
Pattern  4 Patterns, with total recording time not less than 10mins
A-B Scan  User Programmable
A-B Scan Speed  0~64 Levels Setting Available
3D Positioning  Support
PWR On Action Memory / Pattern 1 / Tour 1 / 360° Scan / A-B Scan / Preset 1-18 / None
Park Time  0~60mins available
Dwell Preset  2~60s available
Time Scheduling Function  8 tasks
Power-Off Memory  Support
Anti-Flash  50Hz / 60Hz
IR Distance  IR Led*11 + Laser*4 up to 200M
IR Intensity  Automatically adjusted, depending on the zoom ratio
Ethernet Interface  RJ45*1, 10M/100M Base-T
Storage  Support 256G Micro SD / SDHC / SDXC (Optional)
RS-485 RS-485*1
Alarm  1CH Input, 1CH Output (Optional)
Audio  1CH Input, 1CH Output
Built-in MIC Support
Built-in Speaker Support
Two-way Audio  Supported (Built in Microphone & Speaker)
Snapshot Remote Timing Snapshot, Mobile View Images Snapshot
Motion Detection Intelligent Multiple Detection Zones (Max. 4 Zones)
Alarm Linkage  E-mail Alert and Upload Snapshot to FTP, Relay Out, Mobile Phone App
Humanoid/Vehicle Detection Support
Perimeter protect  Tripwire (Support the classification of Human and Vehicle
Smart Tracking  Auto Tracking
Motion Detection  Support
Alarm Linkage  Upload to FTP, E-mail, Trigger Alarm Output, Trigger Recording
Operating Temp. Indoor: 0~40°, Outdoor: -40°~+65°
Humidity  ≤ 95% Non Condensing
Heater & Blower Auto temperature control
Power  DC12V ≤ 5A
Power Consumption ≤ 20W
Dimension  310(L)*310(W)*440(H)mm
Weight  5.8KG
Protection Level IP66, TVS 6000V Lightning Protection, Surge Protection
Mounting Bracket  Wall Mount Bracket or Ceiling Mount Bracket
Certification  CE / FCC / RoHS
ISO ISO9001
