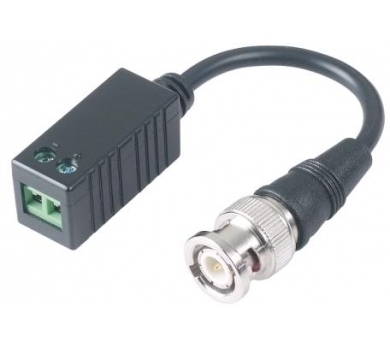

HDTVI / AHD / DVI / CVBS Video Balun with Pigtail
- Transmit a full color video signal up to 300M, transmit HD-TVI / CVI / AHD signal up to 150M
- BNC male to screw terminal with 10cm mini coax cable for easy connection
- Eliminate coaxial cable
Description
| TTP111VEL | |
| Video Input (BNC Connector) | 1 |
| Video Input | 1V p_p, 75Ω |
| CABLE | Twisted Pair CAT 5 |
| Transmission Distance | CVBS: 300M, HD-TVI/AHD/CVI: 150M |
| RJ-45 Output | Terminal |
| Power | X |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension / Weight | 14.5 x 15.5 x 145 mm include 100mm mini coax cable / 18g |
| Certification | CE / FCC / RoHS |
