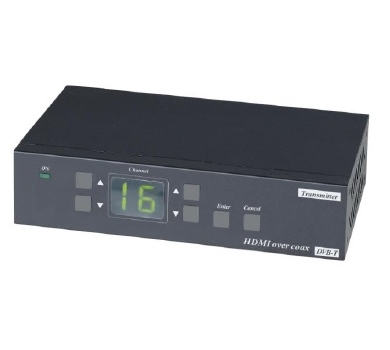

HDMI DVB-T Modular
- Send 1080p High-Definition video with audio over an RF distribution system
- Converts and HDMI signal into an HD Digital DVB-T compatible signal
Description
| HE05CT | ||
| Video Support | 480i/p, 576i/p, 720p, 1080i/p | |
| Video Input | HDMI Type A x 1 | |
| Video Loop Output | HDMI Type A x 1 | |
| Video Output | X | |
| Link Interface | F Connector (RF) x 1 | |
| Function Button | Tact Switch x 6 | |
| Channel Indication | 7 step LED display x 2 | |
| LED | LED (Green) x 1 | |
| IR Connector | X | |
| IR Receiver | X | |
| Power Supply | DC 5V / 1A | |
| Power Consumption | 750mA (Max) | |
| Temperature | Operation: 0 ~ 70°C , Storage: -40 ~ 90°C, Humidity: up to 85% | |
| Dimension / Weight | 167 x 110.5 x 40 mm / 450g | |
| Certification | CE / FCC / RoHS | |
