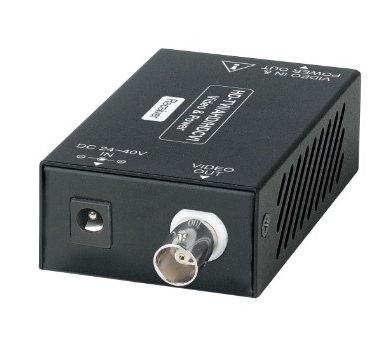

HD-TVI / CVI / AHD / CVBS Video & Power over One Coax
- To send HD video and camera power over one coaxial cable
- Transmission distance up to 300M for TVI and up to 400M for AHD/CVI/CVBS
- Support power input: DC24V - DC40V
Description
| CA101HDPT | CA101HDPR | |
| Power Input / Output | DC JACK 2.0 mm | |
| Video & Power Input / Output | BNC | |
| Input / Output Voltage | DC 12V Output | DC 24V ~ 40V Input |
| Distance (Max) | 400M | |
| Temperature | Operation: 0 ~ 70°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 49.2 x 112.5 x 25.2 mm | |
| Weight | 150 g | |
| Certification | CE / FCC / RoHS | |
