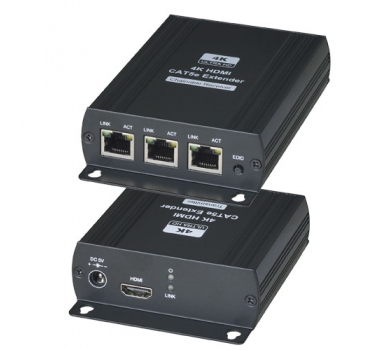

4K HDMI CAT5e Distribution Extender
- Extends 4K UHD HDMI signal over one CAT 5e / 6 cable
- Support resolution up to 1080:@60Hz, 4K@30Hz 4:4:4
- HDCP 1.4 compliant
Description
| HE03T-4K | HE03LR-4K | |
| CAT5e/6 Distance | CAT.5e : 120M / CAT.6 : 140M | |
| HDMI Video Support | Up to 1080P@60Hz, 4K UHD 4:4:4 @30Hz | |
| HDCP Compliant | HDCP1.4 | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz | |
| HDMI Input | HDMI Type A | X |
| HDMI Output | X | HDMI Type A |
| Ethernet | Gigabit RJ45 x 1 | Gigabit RJ45 x 3 |
| Power Consumption | 400mA (Typical) 550mA (Max) | 600mA (Typical) 1400mA (Max) |
| Power Supply | DC 5V 2000mA | |
| Dimension mm | 88 x 110 x 30 | 88 x 145 x 30 |
| Weight g | 230 | 300 |
| Certification | CE / FCC / RoHS | |
