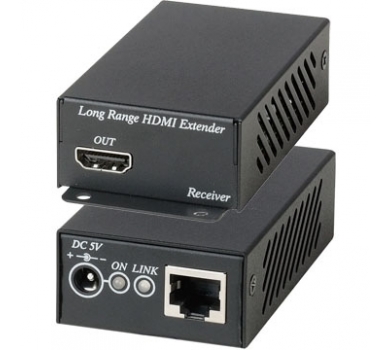

HDMI CAT5e Extender over Single CAT5 cable 100M
- Extends HDMI Signal over one CAT5e / 6 cable
- HDMI 1.4 and HDCP compliance
- Max. Data Rate - 10.2Gbps
Description
| HE02ET | HE02ER | |
| HDMI Video Support | 1080p @ 60Hz @ 48bits, 3D, 4K 60Hz (4:2:0) | |
| HDMI Audio Support | 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| Distance | 100M | |
| Input / Output Interface | HDMI Type A x 1 | |
| HDBaseT Connector | RJ45 x 1 | |
| Power Consumption | Max 3W, Low power: 0.8W | Max 6W, Low Power: 1W |
| Power Supply | DC 5V 2A | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 49.2 x 92 x 25 mm | |
| Weight | 125 g | 135 g |
| Certification | CE / FCC / RoHS | |
