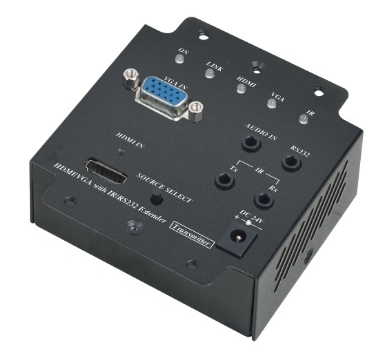

VGA / HDMI Audio Switch to HDBaseT Extender With IR / RS232 / PoH
- To send and extend VGA/HDMI signal with IR/RS232/Power signal over one CAT5e cable
- Auto switch or manually setting for VGA and HDMI inputs
- VGA support stereo audio convert to HDMI output, resolution up to 1920x1200@60GHz
Description
| VH02EIPT | VH02EIPR | |
| HDMI Interface | HDMI Type A | |
| VGA Interface | VGA 15-Pin D-Sub | X |
| HDMI Video Support | Up to 1080p@60Hz, 48bits, 3D Up to 4096 x 2160@30Hz | |
| VGA Video Support | Up to 1920 x 1200@60Hz | |
| Audio Support | Up to LPCM 7.1 192Khz, Dolby TrueHD, DTS-HD MA | |
| Analog Stereo Interface | 3.5mm Terminal x 1 | X |
| HDBaseT Connector | RJ45 x 1 | |
| HDBaseT Distance | 60M by CAT5e/6, 70M by CAT6 | |
| IR Input / Output | 3.5mm Phone Jack x 2 | |
| IR Carrier Frequency / Angle / Distance | 30~60KHz / T ：± 10° / R ：± 55° / 5 M / Bi -directional | |
| RS-232 Interface | DB9(F)/3.5mm STEREO PHONE JACK | DB9(M)/3.5mm STEREO PHONE JACK |
| RS-232 Data Rate | 115200 bps / Duplex | |
| Power Supply | DC 24V / 1.25A | |
| Power Consumption | Max: 11.4W, Power Saving Mode: 1.8W | |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | |
| Dimension mm | 86 x 42 x 93.5 | 92 x 69.5 x 25 |
| Weight g | 300 | 180 |
| Certification | CE / FCC / RoHS | |
