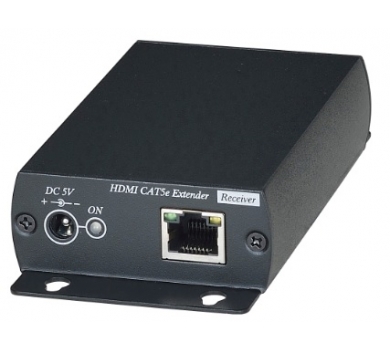

CAT5e HDMI 1 input 2 output Distributor
- Extend HDMI signals over one CAT5E/CAT6 cable
- Support resolutions up to 1080p Full HD
- Optional Model: SR01 Signal Repeater
Description
| HE03T | HE03R | |
| Support Resolution | 1920 x 1080 @ 60hz | |
| Transmission Distance | CAT.5e : 120M / CAT.6 : 150 (Max) | |
| HDMI Connector | HDMI Type A x 2 | HDMI Type A x 1 |
| Link Connector | RJ45 x 1 | |
| Power Supply | DC 5V 2A | |
| Power Consumption | 1.2A | 0.7A |
| Temperature | Operation: -20 ~ 60°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 67 x 170 x 27 | 67 x 130 x 27 |
| Weight g | 250 | 195 |
| Certification | CE / FCC / RoHS | |
